Product on sale

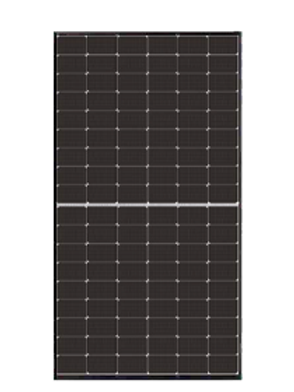

Jinko Tiger Neo 480Wp TOPCon N-Type Mono Black Frame Supply
21 people are viewing this right now
13 products sold in last 8 hours
Selling fast! Over 13 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: JKM480N-60HL4-V-BF-JK03M Panels – Monocrystallines
- Rating: 480W
- Efficiency: 22.2%
- Width: 1,134mm
- Height: 1,903mm
- PID Resistance: Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
- Enhanced Mechanical Load: Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
- Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance.
-
- Supplier Part No: JKM480N-60HL4-V-BF
- Weight: 24.2 kg
- Rated Power: 480 W
- MCS Reference: BABT8801-102-475W
- Length: 1,903 mm
- Width: 1,134 mm
- Depth: 30 mm
- VMPP: 35.38 V
- IMPP: 13.57 A
- Isc: 14.31 A
- Voc: 42.71 V
- Temp. Coefficient (Mpp): -0.3 %
- Clamp position on panel: Long and short side
- Connector Type: JK03M
- Efficiency: 22.2 %
- Pallet Size: Oversized
12 Year Product Warranty 30 Year Linear Power Warranty
Dimensions: 1903x1134x30mm
Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) fork lift truck on site is required to offload these modules.Title Default Title
